Attention

This guide is only for class users. Research users should refer to instructions here.

This guide covers the basic things you need to do to get started using SPHERE in your classes, as a student or a instructor.

Account Setup

Instructors should open their account here and create an organization for their class (Organizations are on the left menu as the user is logged on). Please select a short name, like cs322 or usc201 and specify category Class. Then please post a support ticket for SPHERE ops to approve the organization. You need to do this only once per class. Next semester you can reuse the same organization. If another instructor teaches the same class they can also reuse the same organization.

Students will have their account automatically set up by their instructor.

Using SPHERE as an Instructor or TA

Instructors will use our Class UI to create student accounts, retrieve and reset passwords, upload and assign class materials and collect submissions for grading. TAs can do all these activities as well, except that they cannot create new classes. Our Class UI is accessible from our main login page. Once logged in, look for "Class UI" on the top menu.

Quick link to our

Student/TA Account Creation​

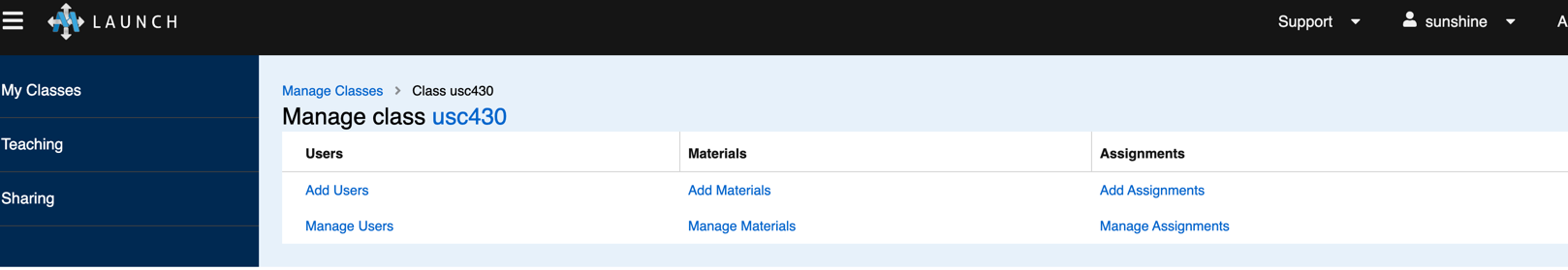

Click on Teaching (left menu) then on your class. Use option "Add Users" and select student or TA. The system will create the requested accounts and you will be able to see the usernames and temporary passwords under "Manage Users" menu item. One sample class's view is shown below.

When student accounts are created each student will need to verify the email address used to register the account and change their password. When you create the account via the Class UI, the student will receive an email which instructs them on verifying the email address. Once that is done the students should go to https://launch.sphere-testbed.net/recovery to trigger an account recovery flow to change their account password. Once a password is changed, the temporary password you see in the Class UI is not relevant.

Student/TA Account Management​

Click on Teaching (left menu) then on your class. Use option "Manage Users". You will be able to edit user information, including their password, and to recycle a user (e.g., in case of a student dropping the class). Students are assigned a generic name at account creation. They can also edit their name from their SPHERE Profile. Please ask the students NOT to edit their password. They should keep their SPHERE-assigned password, as this helps the instructor, TA and SPHERE team debug any issues by logging in as a student.

Adding/Managing Class Materials​

Click on Teaching (left menu) then on your class. Use option "Add Materials" or "Manage Materials". You can add materials to your class, such as a Web page for the course or a homework assignment. Currently only add-by-URL is supported. This simply adds a URL to a Web page hosting your class material.

If you have previously used shared materials, they now reside here. If you have previously used private materials, please refer to the guidelines on how to set up resources when using private materials.

Creating Assignments​

Click on Teaching (left menu) then on your class. Use option "Add Assignment". You will be able to select your assignment from the existing materials, so please make sure to add materials first and then use them to create assignments. You can now set the release date as well as the due date for each assignment. You can hide assignments under development by making them visible only to Instructors/TAs. At the release date, they will become visible to everyone in your class.

Downloading Assignments​

This option is still under development, with expected release date of September 6, 2024.

Using SPHERE as a Student

Students will receive their login credentials from their instructor. Should a student forget their password, their instructor can retrieve it or reset it.

Students will use our Class UI to interact with class content. Our Class UI is accessible from our main login page. Once logged in, look for "Class UI" on the top menu.

Accessing Class Materials​

To access class materials log into our Class UI. You should be able to view class materials and assignments, and to submit your answers. To submit an answer to the assignment you would upload one file and click "Submit".

Working on Assignments​

Each assignment will have a name of the lab you will work on, let's call it labname. To start an experiment and set up the lab follow the steps below.

  1. Log into the testbed using your username and password, at our main site

  2. Click on XDCs (left menu) and create a new XDC. Select "personal" type of XDC and name it "xdc". You should only do this once per class. Wait a little while and refresh the page. A Jupyter link will become visible.

  3. Click on Jupyter link (center window)

  4. Sign in again with your SPHERE username and password

  5. Click "Start Server" (blue button) 5a. Next time you log in and access Jupyter link, it will give you an option to re-connect to the same server (blue button). Select that option.

  6. Click on Terminal app

  7. Only the first time you access your XDC via Terminal app, type the text below.

    $ echo "PATH=$PATH:/share" > .profile
    $ echo yourpassword > pass.txt
    $ exit

7a. Every other time you access the same XDC via Terminal app, there is nothing special you need to do. Just open the Terminal app and proceed to the next step.

  1. If you are just starting an assignment, to start an experiment, type (use the labname specified in your assignment):

    $ startexp labname

    Wait until the screen indicates that this has completed. Then type (use the labname specified in your assignment):

    $ runlab labname

    The runlab command may appear to hang in the end. Type ENTER and it should indicate that it has completed.

    If you receive some errors,

    1. wait a few minutes and try runlab command again.
    2. If that fails again, re-run the sequence of startexp and runlab one more time.
    3. If it fails again, please contact your instructor or TA to ask for help.

  2. To access your nodes from the terminal window type:

    $ ssh nodename

    For example, if your topology has nodes a and b type ssh a or ssh b. If you need to access multiple nodes at the same time, open another tab in Terminal app and repeat step 9.

Finishing Assignments​

When you finish an assignment, release the resources by repeating steps 1,2,3,4 above and then typing:

  $ stopexp labname

Answer the questions specified in your lab materials and submit answers using our Class UI.

Copying Files​

Your assignment may ask you to include some files from your experimental nodes. Please follow instructions here (scroll all the way to the bottom). The instructions assume you have installed mrg utility on your home machine. To do so, please obtain the source (and follow README to compile it) or binary from this site. After installation configured your API point (you only have to do this once) and have logged into your merge account by doing mrg login yourusername -p yourpassword (you have to do this each time you open a new terminal on your machine).

A complete example is in this assignment.

Port Forwarding​

Your assignment may ask you to perform port forwarding. Follow instructions here to set up port forwarding.

Attention

You are welcome to read the rest of the documentation, but this current page summarizes everything you will need for class use.
